What Is On-Cell? What Is In-Cell? Understanding Two Touch Integration Solutions in One Article

When choosing a display or touchscreen, many people come across two terms: On-Cell and In-Cell.

They sound similar, and they do follow the same technical approach—both integrate touch functionality into the display.

However, the location of that integration differs, resulting in differences in thickness, display performance, manufacturing complexity, and cost.

This article explains these two concepts as simply and clearly as possible.

I. First, Understand: How Are Traditional Touchscreens Made?

To understand On-Cell and In-Cell, we first need to know how screens achieved touch functionality before these technologies appeared.

The most common traditional solution is called Add-On (external touch), with a structure roughly as follows:

•  Outermost layer: Cover glass

•  Middle: A separate touch-sensing layer

•  Below: Display panel

•  Bottommost layer: Backlight module

In other words, touch functionality is an additional layer “attached” to the display.

This solution is mature and has a high yield rate, but its disadvantages are:

•  The overall structure is thicker

•  An additional bonding layer reduces light transmittance

•  More bonding processes mean the cost is not necessarily low

To make screens thinner and more transparent, the industry moved the touch layer “inward,” giving rise to On-Cell and In-Cell.

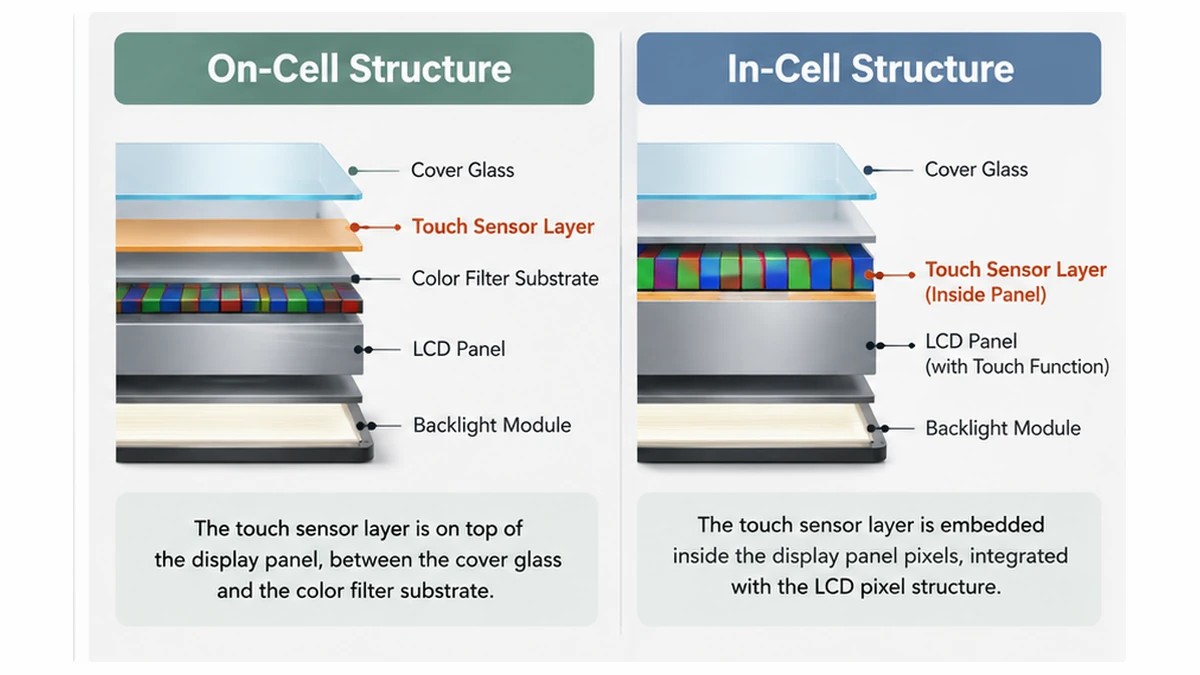

II. What Is On-Cell?

On-Cell literally means “on top of the cell.”

Here, “cell” refers to the core unit of the display panel. The On-Cell approach is to:

Place the touch-sensing layer above the display panel, usually on the outside of the color filter substrate, between the display panel and the cover glass.

You can think of it this way: the touch layer sits “on top” of the display panel, but has not entered the liquid crystal pixels themselves.

Characteristics of On-Cell

•  Thinner than Add-On: Eliminates one layer of external touch glass or film

•  Less display interference: The touch layer does not directly enter the pixel-driving area

•  Relatively mature process: Higher yield rates and relatively controllable costs

•  Good light transmittance: Does not significantly affect screen brightness

•  Common in AMOLED: Many flexible and curved screens use the On-Cell approach

Typical Applications

•  AMOLED smartphone screens

•  Automotive center control displays

•  Industrial touch devices

•  Curved display products

III. What Is In-Cell?

In-Cell literally means “inside the cell.”

Its approach goes a step further:

The touch sensors are embedded directly inside the pixel units of the display panel, usually integrated with the common electrodes of the liquid crystal pixels or the array substrate.

In other words, touch functionality is not attached to the panel; it is “built into” the display panel itself.

Characteristics of In-Cell

•  Thinner overall structure: The touch layer and display layer are combined into one

•  Higher light transmittance: One less touch structure makes the display more transparent

•  More complex touch noise: Touch and display driving operate in the same area, requiring stronger algorithms to suppress interference

•  High manufacturing difficulty: Greater yield challenges and usually higher costs

•  Mostly found in high-end LCD / OLED: Relatively common in smartphones

Typical Applications

•  High-end smartphones

•  Ultra-thin terminal devices

•  Products with extremely high requirements for thickness and display performance

•  Some medical and portable devices

A Table to Understand the Differences at a Glance

In one sentence:

On-Cell means “touch functionality is placed on top of the display panel,” while In-Cell means “touch functionality is built into the display panel.”

V. Why Is the Industry Paying More Attention to These Two Solutions?

For end products, the value of On-Cell and In-Cell is straightforward:

•  Thinner and lighter: More room for overall product design

•  More transparent display: A better visual experience

•  Higher integration: Fewer bonding processes and reduced module thickness

•  Product differentiation: More selling points for premium positioning

•  Improved reliability: Fewer bonding problems caused by external touch layers

Especially in applications such as automotive systems, industrial control, smart homes, and portable medical devices, touchscreens must not only be easy to use but also thin, stable, and durable. As a result, On-Cell and In-Cell have become preferred options for an increasing number of projects.

VI. Should You Choose On-Cell or In-Cell?

There is no absolute answer. The key lies in the project requirements.

•  If controllable costs, high yield rates, and display stability are priorities: Consider On-Cell first

•  If extreme thinness and premium display performance are priorities: In-Cell can be evaluated

•  If the product is larger or the operating environment is complex: Touch sensitivity, interference resistance, and repair costs must also be considered together

•  If the project timeline is tight: On-Cell is usually easier to implement

When making a selection, it is advisable to evaluate display performance, touch accuracy, thickness requirements, cost budget, and mass-production yield together, rather than looking at a single parameter.

VII. Frequently Asked Questions

Q: Which Is Better, On-Cell or In-Cell?

Neither is absolutely better or worse; what matters is suitability. On-Cell is more mature and offers more controllable costs; In-Cell is thinner and provides a more transparent display, but manufacturing is more difficult and costs are higher.

Q: Is In-Cell Necessarily More Advanced Than On-Cell?

Not necessarily. In-Cell offers higher integration, but that does not mean it is more suitable for every application. For large-size products, industrial environments, and cost-sensitive projects, On-Cell is often more practical.

Q: Will Add-On Touch Technology Be Phased Out?

No. Add-On solutions are mature, flexible, and have high yield rates. They remain a mainstream choice in many industrial and custom applications.

VIII. Conclusion

Essentially, both On-Cell and In-Cell are intended to make touchscreens thinner, more transparent, and more highly integrated.

To understand the difference between them, you do not need to memorize complicated manufacturing details. Just remember one sentence:

On-Cell is above the panel; In-Cell is inside the panel.

Which one to choose depends on your product positioning, cost budget, and application scenario.

If you are evaluating touch display solutions, please contact us for On-Cell / In-Cell selection recommendations and sample support.
